Features
It has internal holes of different sizes and can be easily connected to steel wire and nylon wire of various specifications.
It also has the characteristics of not hurting the line, anti-winding and big pulling force.
It also enables the rotation of the sub-line to a high-speed rotation of 360 degrees.
Instructions for use
Pass the wire into the copper tube and then flatten the copper tube with pliers so that the copper tube catches the wire.
No.: YM-1055

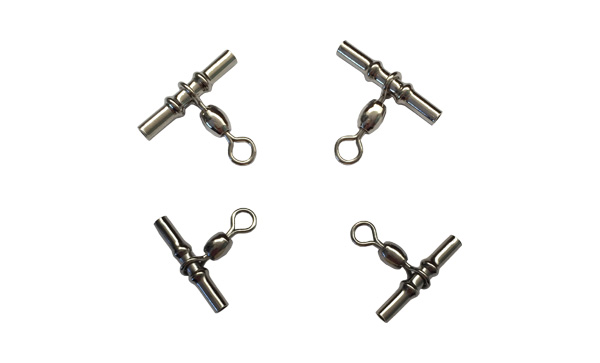

Name: Cross-line crane swivel
Material: Brass
Color: Black nickel, white nickel
| Specification | Pull KG |
| 3/0#(3.2mm) | 100 |
| 2/0#(2.5mm) | 75 |
| 1/0#(2.3mm) | 60 |
| 1#(2.1mm) | 47 |
| 2#(1.9mm) | 43 |
| 3#(1.5mm) | 40 |
| 4#(1.4mm) | 35 |
Cross-line crane swivel is composed of a two-piece tube and a three-piece tube. It can be used for cross lines, which are made with various specifications of steel wire and various specifications of nylon wire. It also has the characteristics of not hurting the line, anti-winding and big pulling force. The sub-line can be easily rotated to more than 360 degrees by connecting the two-piece tube to the three-piece tube.
